Getting 530 error even though client is set to authenticate

Use this forum if you have installed hMailServer and want to ask a question related to a production release of hMailServer. Before posting, please read the troubleshooting guide. A large part of all reported issues are already described in detail here.
Post Reply
gweeks
New user
New user
Posts: 5
Joined: 2008-01-23 17:34

Getting 530 error even though client is set to authenticate

Post by gweeks » 2008-01-23 18:01

In hmail I set up an account with the following settings:
Account address: test@xxxxxx.com
Password: test
------------------------------------
My other hmail settings are:
Internet IP Range: 0.0.0.0 to 255.255.255.255
Allow connections: SMTP, POP3, IMAP all checked
Require authentication for deliveries: To local accounts unchecked
To remote accounts checked
Allow deliveries from:
Local to local checked
Local to external checked
External to local checked
External to external unchecked
------------------------------------
In outlook I have the following settings:
Servers:
Incoming (POP3): mail.xxxxxx.com
Outgoing (SMTP): mail.xxxxxx.com

Incoming mail server:
Account name: test@xxxxxx.com
Password: test

Outgoing mail server:
My server requires authentication is checked
Use same settings as my incoming mail server is selected
------------------------------------
My problem is that I get a 530 SMTP authentication is required when I try to send from test@xxxxxx.com to any external address. When I uncheck "Require authentication for deliveries: To remote accounts" in hmail the email goes through instantly, but obviously I want to leave this checked. Why is hmail sending the 530 when I have Outlook configured to authenticate for outgoing messages? I have triple checked all of my settings. Log from hmail below. Any help greatly appreciated.
------------------------------------
"TCPIP" 384 "2008-01-23 10:54:13.352" "Created accept socket 2072 on listening socket 1108"
"DEBUG" 384 "2008-01-23 10:54:13.352" "Socket::Socket(ID: 21000)"
"SMTPD" 384 21000 "2008-01-23 10:54:13.352" "68.84.1.229" "SENT: 220 mail.xxxxxx.com ESMTP"
"SMTPD" 384 21000 "2008-01-23 10:54:13.383" "68.84.1.229" "RECEIVED: XXXX Sony"
"SMTPD" 384 21000 "2008-01-23 10:54:13.383" "68.84.1.229" "SENT: 502 Use HELO/EHLO first."
"SMTPD" 384 21000 "2008-01-23 10:54:13.414" "68.84.1.229" "RECEIVED: HELO Sony"
"SMTPD" 384 21000 "2008-01-23 10:54:13.414" "68.84.1.229" "SENT: 250 Hello."
"SMTPD" 384 21000 "2008-01-23 10:54:13.445" "68.84.1.229" "RECEIVED: MAIL FROM: <test@xxxxxx.com>"
"SMTPD" 384 21000 "2008-01-23 10:54:13.445" "68.84.1.229" "SENT: 250 OK"
"SMTPD" 384 21000 "2008-01-23 10:54:13.477" "68.84.1.229" "RECEIVED: RCPT TO: <test@yyyyyy.com>"
"SMTPD" 384 21000 "2008-01-23 10:54:13.477" "68.84.1.229" "SENT: 530 SMTP authentication is required."
"DEBUG" 384 "2008-01-23 10:54:13.477" "AWStats::LogDeliveryFailure"
"SMTPD" 384 21000 "2008-01-23 10:54:13.508" "68.84.1.229" "RECEIVED: QUIT"
"DEBUG" 384 "2008-01-23 10:54:13.508" "PersistentMessage::DeleteFile()"
"DEBUG" 384 "2008-01-23 10:54:13.508" "PersistentMessage::~DeleteFile() - E3"
"SMTPD" 384 21000 "2008-01-23 10:54:13.508" "68.84.1.229" "SENT: 221 goodbye"
"TCPIP" 384 "2008-01-23 10:54:13.508" "Disconnecting socket 1460 for session 21000"
"DEBUG" 384 "2008-01-23 10:54:13.508" "Socket::~Socket(ID: 21000)"
[/b]

gweeks
New user
New user
Posts: 5
Joined: 2008-01-23 17:34

Post by gweeks » 2008-01-23 23:30

By the way I am using hmail 4.4-B270 with MySQL

^DooM^
Site Admin
Posts: 13861
Joined: 2005-07-29 16:18
Location: UK

Post by ^DooM^ » 2008-01-24 03:40

That client is not authenticating according to the log. What client are you using?

gweeks
New user
New user
Posts: 5
Joined: 2008-01-23 17:34

Post by gweeks » 2008-01-24 13:10

I am using Outlook 2000. I have other email accounts in this copy of Outlook that are authenticating with other servers and they are set up the same way.

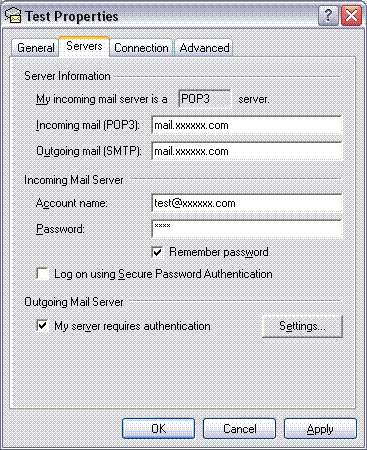

Here are the settings. These work to retrieve mail
And after I click settings... for outgoing mail server

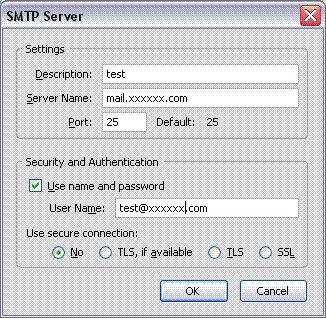

I also tried with Thunderbird with these settings and had the same result.

gweeks
New user
New user
Posts: 5
Joined: 2008-01-23 17:34

Post by gweeks » 2008-01-24 14:24

Is it ok that incoming and outgoing mail servers are both named the same (mail.xxxxxx.com)?

^DooM^
Site Admin
Posts: 13861
Joined: 2005-07-29 16:18
Location: UK

Post by ^DooM^ » 2008-01-24 20:41

As long as it points to your server it doesn't matter what it is called :)

Do you have a firewall, AV, Spam filtering software that could be in the way? If you have, temporarily disable them and any scripts you may have running and try again.

User avatar
martin
Developer
Developer
Posts: 6834
Joined: 2003-11-21 01:09
Location: Sweden
Contact:

Post by martin » 2008-01-24 20:56

You have a firewall / router which replaces EHLO with XXXX in the log. I've seen that a couple of times before.

http://www.hmailserver.com/forum/viewtopic.php?t=2687

gweeks
New user
New user
Posts: 5
Joined: 2008-01-23 17:34

Post by gweeks » 2008-01-24 22:20

That must be it. We have a Cisco Pix like the user in the other thread. Thank you both!!! :D

User avatar
SorenR
Senior user
Senior user
Posts: 3426
Joined: 2006-08-21 15:38
Location: Denmark

Post by SorenR » 2008-01-25 00:03


milosh
New user
New user
Posts: 3
Joined: 2008-02-17 20:54
Location: Poland

Post by milosh » 2008-02-17 21:01

I think I have a similar problem. However I have got no idea how to solve it. Maybe you can halp me. Reciving email is ok, bot I can;t send emails from my hmailserver account anywhere. I always get 530. Log:

Code: Select all

"SMTPD"	3308	52	"2008-02-17 19:43:41.140"	"xx.xx.xx.xx"	"SENT: 220 mydomain.net ESMTP"
"SMTPD"	3308	52	"2008-02-17 19:43:41.187"	"xx.xx.xx.xx"	"RECEIVED: EHLO andrzej"
"SMTPD"	3308	52	"2008-02-17 19:43:41.187"	"xx.xx.xx.xx"	"SENT: 250-hmailserver[nl]250-SIZE[nl]250 AUTH LOGIN"
"SMTPD"	3308	52	"2008-02-17 19:43:41.218"	"xx.xx.xx.xx"	"RECEIVED: AUTH LOGIN"
"SMTPD"	3308	52	"2008-02-17 19:43:41.218"	"xx.xx.xx.xx"	"SENT: 334 VXNlcm5hbWU6"
"SMTPD"	3308	52	"2008-02-17 19:43:41.234"	"xx.xx.xx.xx"	"RECEIVED: YWRtaW5AbWlsb3Nob21lLm5ldA=="
"SMTPD"	3308	52	"2008-02-17 19:43:41.250"	"xx.xx.xx.xx"	"SENT: 334 UGFzc3dvcmQ6"
"SMTPD"	3308	52	"2008-02-17 19:43:41.265"	"xx.xx.xx.xx"	"RECEIVED: ***"
"SMTPD"	3308	52	"2008-02-17 19:43:41.281"	"xx.xx.xx.xx"	"SENT: 235 authenticated."
"SMTPD"	3308	52	"2008-02-17 19:43:42.421"	"xx.xx.xx.xx"	"RECEIVED: MAIL FROM: <admin@mydomain.net>"
"SMTPD"	3308	52	"2008-02-17 19:43:42.437"	"xx.xx.xx.xx"	"SENT: 250 OK"
"SMTPD"	3308	52	"2008-02-17 19:43:42.468"	"xx.xx.xx.xx"	"RECEIVED: RCPT TO: <admin@hisdomain.pl>"
"SMTPD"	3308	52	"2008-02-17 19:43:42.468"	"xx.xx.xx.xx"	"SENT: 250 OK"
"SMTPD"	3308	52	"2008-02-17 19:43:42.500"	"xx.xx.xx.xx"	"RECEIVED: DATA"
"SMTPD"	3308	52	"2008-02-17 19:43:42.500"	"xx.xx.xx.xx"	"SENT: 354 OK, send."
"SMTPD"	3308	52	"2008-02-17 19:43:43.968"	"xx.xx.xx.xx"	"SENT: 250 Queued (1.422 seconds)"
"SMTPD"	3308	52	"2008-02-17 19:43:44.000"	"xx.xx.xx.xx"	"RECEIVED: QUIT"
"SMTPD"	3308	52	"2008-02-17 19:43:44.000"	"xx.xx.xx.xx"	"SENT: 221 goodbye"
"SMTPD"	3308	54	"2008-02-17 19:43:44.031"	"xx.xx.xx.xx"	"SENT: 220 mydomain.net ESMTP"
"SMTPC"	3308	53	"2008-02-17 19:43:44.046"	"xx.xx.xx.xx"	"RECEIVED: 220 mydomain.net ESMTP"
"SMTPC"	3308	53	"2008-02-17 19:43:44.046"	"xx.xx.xx.xx"	"SENT: HELO mydomain.net"
"SMTPD"	3308	54	"2008-02-17 19:43:44.046"	"xx.xx.xx.xx"	"RECEIVED: HELO mydomain.net"
"SMTPD"	3308	54	"2008-02-17 19:43:44.046"	"xx.xx.xx.xx"	"SENT: 250 Hello."
"SMTPC"	3308	53	"2008-02-17 19:43:44.062"	"xx.xx.xx.xx"	"RECEIVED: 250 Hello."
"SMTPC"	3308	53	"2008-02-17 19:43:44.062"	"xx.xx.xx.xx"	"SENT: MAIL FROM:<admin@mydomain.net>"
"SMTPD"	3308	54	"2008-02-17 19:43:44.078"	"xx.xx.xx.xx"	"RECEIVED: MAIL FROM:<admin@mydomain.net>"
"SMTPD"	3308	54	"2008-02-17 19:43:44.093"	"xx.xx.xx.xx"	"SENT: 250 OK"
"SMTPC"	3308	53	"2008-02-17 19:43:44.093"	"xx.xx.xx.xx"	"RECEIVED: 250 OK"
"SMTPC"	3308	53	"2008-02-17 19:43:44.093"	"xx.xx.xx.xx"	"SENT: RCPT TO:<admin@hisdomain.pl>"
"SMTPD"	3308	54	"2008-02-17 19:43:44.109"	"xx.xx.xx.xx"	"RECEIVED: RCPT TO:<admin@hisdomain.pl>"
"SMTPD"	3308	54	"2008-02-17 19:43:44.109"	"xx.xx.xx.xx"	"SENT: 530 SMTP authentication is required."
"SMTPC"	3308	53	"2008-02-17 19:43:44.109"	"xx.xx.xx.xx"	"RECEIVED: 530 SMTP authentication is required."
"SMTPC"	3308	53	"2008-02-17 19:43:44.109"	"xx.xx.xx.xx"	"SENT: QUIT"
"SMTPD"	3308	54	"2008-02-17 19:43:44.125"	"xx.xx.xx.xx"	"RECEIVED: QUIT"
"SMTPD"	3308	54	"2008-02-17 19:43:44.125"	"xx.xx.xx.xx"	"SENT: 221 goodbye"
"SMTPC"	3308	53	"2008-02-17 19:43:44.125"	"xx.xx.xx.xx"	"RECEIVED: 221 goodbye"
What can I do? I don't whink it;s a router problem. (there are domain names and ip adress chnged in log)

User avatar
martin
Developer
Developer
Posts: 6834
Joined: 2003-11-21 01:09
Location: Sweden
Contact:

Post by martin » 2008-02-17 21:21

Have you entered a SMTP relayer in your SMTP settings?

User avatar
SorenR
Senior user
Senior user
Posts: 3426
Joined: 2006-08-21 15:38
Location: Denmark

Post by SorenR » 2008-02-17 21:22

Are you using your ISP SMTP server as relay? Some ISP's require authentication so not to be open relays.

milosh
New user
New user
Posts: 3
Joined: 2008-02-17 20:54
Location: Poland

Post by milosh » 2008-02-17 21:27

I have entered the same host in SMTP relayer as Host Name. Is it correct?

User avatar
martin
Developer
Developer
Posts: 6834
Joined: 2003-11-21 01:09
Location: Sweden
Contact:

Post by martin » 2008-02-17 21:37


milosh
New user
New user
Posts: 3
Joined: 2008-02-17 20:54
Location: Poland

Post by milosh » 2008-02-17 21:41

My fault... anyway thank u for help!
